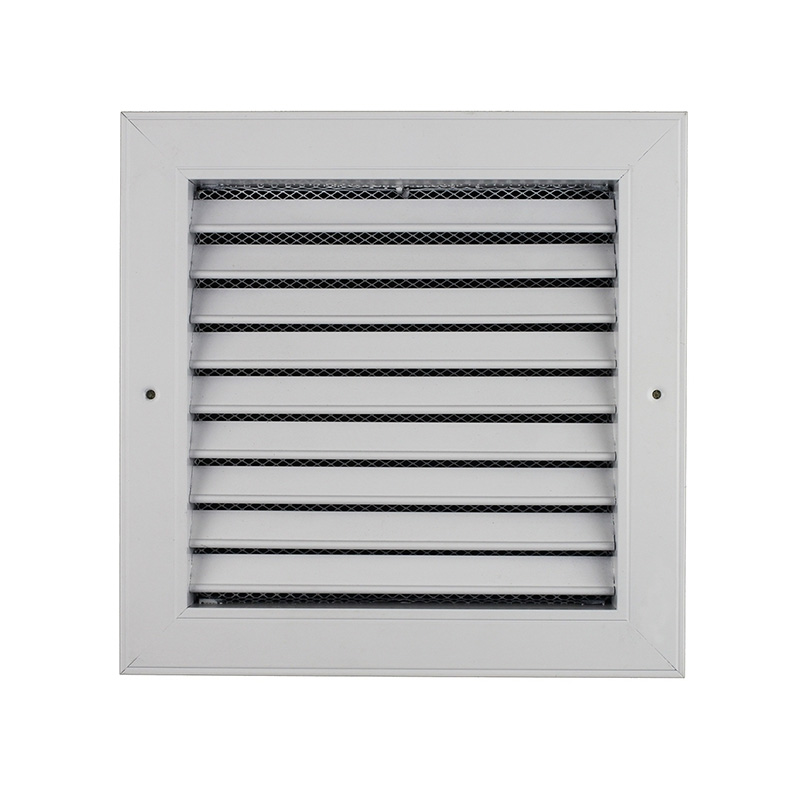

Description
Construction:
- Frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange as standard.
- Blades: Aerofoil blades from aluminum profile
- Blades spacing: 20mm as standard
- Filter Frame: Dia 5mm steel
- Filter media: Aluminum mesh
Description:
- The frame and blades are constructed with high quality extruded aluminum profiles, which have
the advantages of corrosion resistance and rigidity. - The blades are fixed on the frame with aluminum pins to ensure smooth operation and no sound.
- The blades are set at a 45° Angle with a spacing of 20mm and fixed on the rack.
- Aluminum filter is optionally set on the back.
- SG-FBN—c/w the air filter
- SG-FBN—c/w the air filter
Surface Finish:
- Powder coated color finish as per RAL color
- Natural anodized aluminum finish

Material thickness:
- 0.8mm
Size:
- Any size available
- Overall face size = Neck size + 55mm
- Standard size (Neck size=A)
| Item Code | Neck size | Face size |
| W x H(mm) | W x H(mm) | |
| SG-FB-150 | 150 x 150 | 210 x 210 |
| SG-FB-200 | 200 x 200 | 260 x260 |
| SG-FB-250 | 250 x 250 | 310 x310 |
| SG-FB-300 | 300 x 300 | 360 x 360 |
| SG-FB-350 | 350 x 350 | 410 x410 |
