Description

Construction:

• Frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange as standard.
• Eggcrate Core: 12.7×12.7×12.7mm aluminum grid

Description:

• The frame and blades are constructed with high quality extruded aluminum profiles, which
  have the advantages of corrosion resistance and rigidity.
• The aluminum eggcrate grille is fixed to the outer frame.
• Rigid construction provides noise-free performance.
• Designed for return air applications in air-conditioned Spaces.

Surface Finish:

• Powder coated color finish as per RAL color

Standard Material thickness:

• 1.0m for option

Size:

• Any size available
• Overall face size = Neck size + 55mm

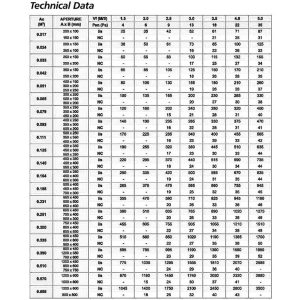

• Standard size (Neck size=A)
