Evapoler specializes in advanced central air cooling systems designed to deliver energy-efficient, eco-friendly, and cost-effective cooling solutions for industrial and commercial spaces.
We are committed to total customer satisfaction by ensuring in time efficient air cooling services at affordable cost with continual improvement in technology and quality management system.
To Provide innovative, eco-friendly, energy saving and efficient air cooling system /product & services within reach of community at an affordable cost.
To be a leader in energy efficient and eco friendly air cooling products and services.
Our air cooling solutions and duct work can be concealed in false ceilings, so they do not hinder your workspace.
Supply & Extraction Systems Heat Recovery Ventilation
Humidification dehumidification Temperature Logging Service
WHY EVAPORATIVE AIR COOLING

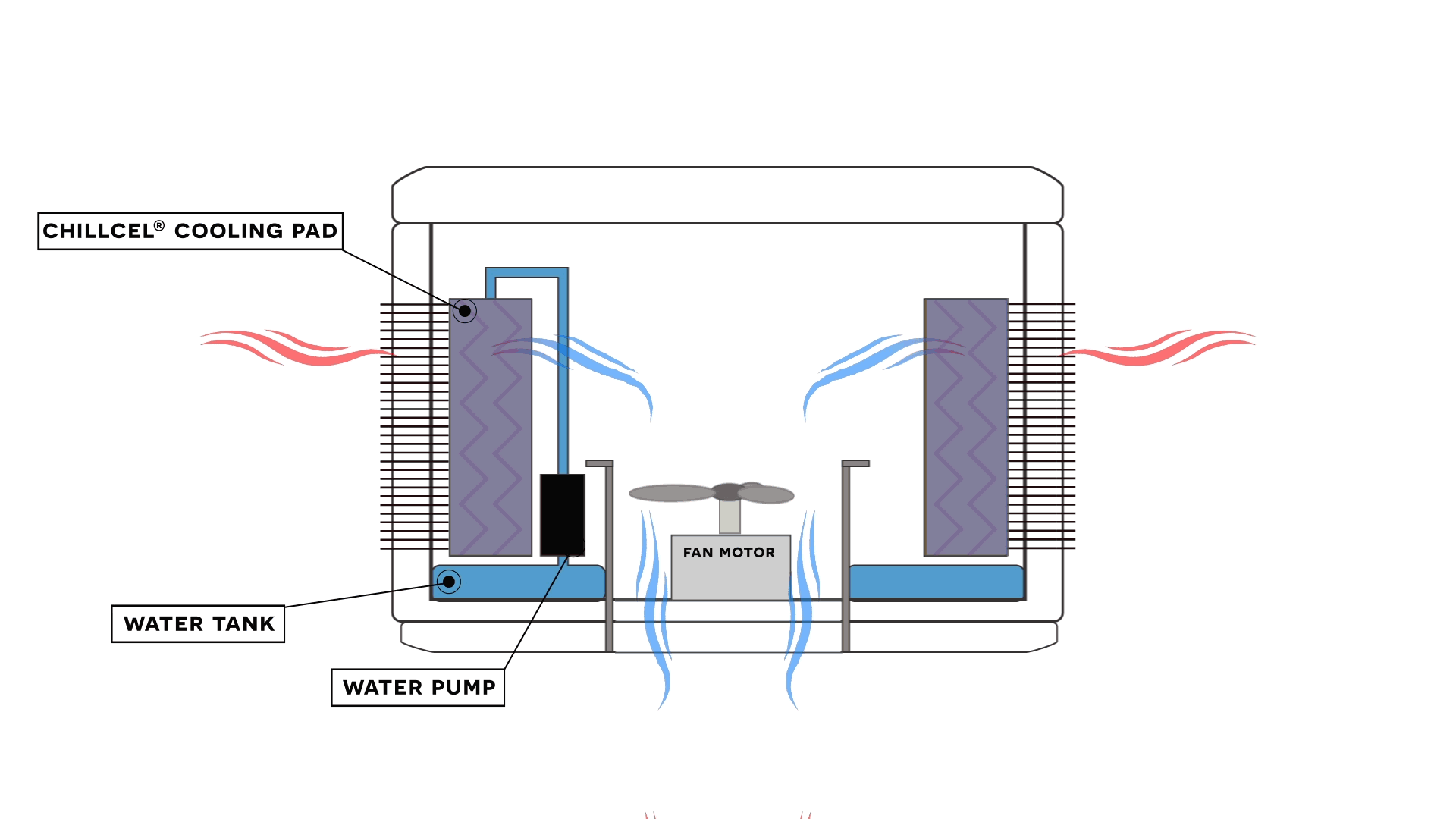

The main difference between an evaporative air cooling system and AC is that a cooler uses the hot air in the room and water in order to produce cool air leading to less energy consumption as it only has two major components which need powering; a water pump and a fan. A constant supply of water is needed in order to keep the pads wet and cool the air.
The cooler is also known as Evaporative air cooler, Swamp cooler, Desert cooler or Water Air cooler.
Evaporative air cooling is the natural process of cooling, similar to wind flowing across a lake. Evaporative air cooler delivers 100% fresh filtered cool air at much lower cost than a refrigerated air conditioner. Thus it is the most viable & economic option for cooling large & open areas. Moreover ,There is no need to shut doors & windows. In fact, when doors & windows are left open, it works more efficiently.
Some of the advantages of these Evaporative cooling system are that they use up to 60-80 percent less electricity than refrigerative units. Evaporative air cooler require very little space for installation and feature revolutionary directly coupled motor technology that can cool your entire home or working space measuring up to 1500 sq.ft. with just 1.1 kw electric power.
Evaporative air cooler contain no harmful synthetic refrigerants for cooling . Many of the gases used in refrigerated air conditioning are potent greenhouse gases like hydrofluorocarbons or chlorofluorocarbons which deplete the ozone layer. CO2 emissions are many times less with an evaporative air cooler.
These are some of the major differences between Cooler and AC.
| Evaporative Air cooling | Air Conditioning |
|---|---|
| Introduce 100% fresh air. | Re-circulate the same stale air. |
| Windows and doors can be left open. | Windows and doors must be shut. |
| Keeps the air moist, good for allergic and asthmatic conditions. | Reduces the moisture, which can be troublesome for asthma and allergy sufferers. |
| 100% fresh air eliminates many causes of Sick Building Syndrome. | Re-circulated air may contain germs and can result in sick Building Syndrome. |
| Increased cooling capacity as outside temperature rises. | Reduced efficiency and capacity as outside temperature rises. |
| 80% less running cost than Air conditioning. | Higher running costs. |
| Is healthier for the environment – No Harmful emissions & No synthetic refrigerants. | Synthetic refrigerants |

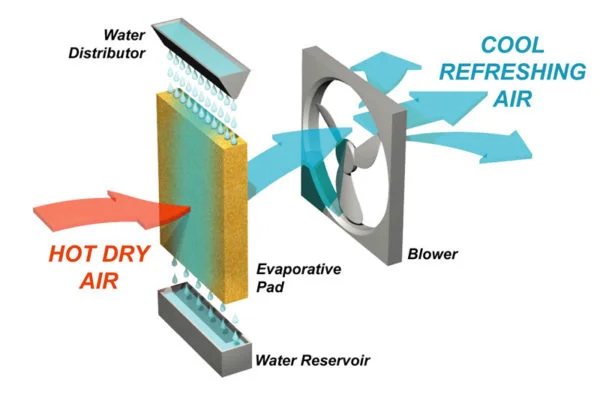

An Evaporative air cooler works on the principle of evaporation of water. When water and hot air come into contact, the water evaporates. Each EVAPOLER cooler contains large cooling pads. A special water distribution system uniformly spreads water over the surface of the pad, to keep the entire air contact surface thoroughly wetted. As the hot air passes through the wet pads the water absorbs some of the heat as it evaporates. The beautifully cooled fresh air is then delivered into the building. Natural evaporation cools the air, while the pads filter out dust, pollen and other contaminants that can trigger hay fever & asthma. The result: cooler, cleaner & fresher air without use of potentially toxic refrigerants & chemicals.
THE PRINCIPLES OF EVAPORATIVE COOLING
As water is evaporated, energy is lost from the air, thereby reducing the temperature of incoming air. Two temperatures are important when dealing with evaporative cooling systems.
Dry Bulb Temperature: This is the temperature that we usually think of as air temperature, measured by a regular thermometer exposed to the air stream. Wet Bulb Temperature: This is the lowest temperature that can be achieved by any evaporative air cooling system at 100% efficiency. When considering water evaporating into air, the wet-bulb temperature, as compared to the air’s dry-bulb temperature, is a measure of the potential for evaporative cooling. The dry and wet bulb temperature can be used to calculate the relative humidity or alternatively wet bulb temperature can be determine from psychometric chart if dry-bulb temperature and relative humidity is known. Evaporation will take place when the humidity is below 100% and the air begins to absorb water. The term humidity describes how much water is already in the air relative to the amount it is capable of holding. Air is saturated when it cannot hold any more water. Imagine it as a sponge, if the sponge held half as much water as it was capable of holding, it would be 50% saturated. In the case of air, we would describe the Relative Humidity as being 50%. Energy is required to change water from liquid to vapour. This energy is obtained in an adiabatic process from the air itself. Air entering an evaporative air cooler gives up heat energy to evaporate water. During this process, the dry bulb temperature of the air passing through the cooler is lowered and hence the cooling effect.
Save on Running Cost: Are your business or residential air conditioning bills threatening to drive you out of business or your home? Evaporative air cooling systems typically use 70% to 90% less power than conventional air conditioning and best of all, you can leave the windows and doors open.
COMPARISON WITH OTHER COOLING AND AIR CONDITIONING SYSTEM :
| TYPE | Evapoler | Air Conditioning | Air Washer |
|---|---|---|---|
| Capacity | 18000 CMH | 2 ton | 18000 CMH |
| Power | 1.1 kw | 2.1 kw | 3.8 kw |
| Covered Area | 1500 sqft | 1500 sqft | 1500 sqft |
| No. of Machines Required | 1 | 5 | 1 |
| Total kw | 1.1 | 10.5 | 3.8 |
| Electricity Unit Consumption per year(10 hrs, 240 days) | 2640 | 25200 | 9120 |
| Â | Â | Â | Â |
| % Running cost with reference to refrigerative aircon | 10.48% | 100% | 36.19% |
Help Reduce Global Warming
No heat is released to the atmosphere from the Evaporative air coolers.
HEALTH BENEFITS: Research has shown that as temperatures climb, productivity and attentiveness drops off. Whether you are in school, church, at work, or in your home, being comfortable is important. Evaporative air cooling provides 100% fresh, cooled air continuously while conventional air conditioning uses a closed system that re-circulates the same stale air over and over again. Then constant air movement of the evaporative air cooler system pushes hot air out, thereby removing dust allergens, smoke odor and pollution while replacing it with cool fresh air. This is good for you, and makes our air cooling systems kind to asthma and allergy sufferers.
ENVIRONMENTAL BENEFITS: Every time a consumer chooses an evaporative air conditioner over a refrigerated system, the benefits for the environment are significant.
LESS ELECTRICITY USAGES: Evaporative air cooler consume only a small proportion of the electricity consumed by a comparable refrigerated system. An Evapoler air cooler uses up to 90% less electricity than refrigerated units and up to 40% less than conventional ducted evaporative air cooling systems. Therefore less fossil fuels like coal and natural gas will be consumed in the production of electricity and less electricity generation infrastructure will be required.
LOWER PEAK ENERGY USAGES: Lower Peak Energy usage means lower wiring costs, potentially useable with solar energy and less requirement for additional power stations.
NO PRODUCTION OF CFCs AND HFCs: Evaporative air cooling systems contain no harmful synthetic refrigerants. Many of the gases used in refrigerated air conditioning are potent greenhouse gases like hydrofluorocarbons or chlorofluorocarbons which deplete the ozone layer.
LESS GREEN HOUSE GAS PRODUCTION: Carbon Dioxide (CO2) emissions are many times less with evaporative air conditioners compared with refrigerated alternatives. Carbon Dioxide is by far the main greenhouse gas.
We offer:
A free survey of your premises to assess requirements
Quality products, design and workmanship at competitive prices
We understand clients’ needs very minutely, and then design systems to meet customized requirements and offer the most suitable and cost-effective cooling solutions for full re-fits and upgrades. Designs can be to your exact specifications or you may wish to draw upon our experience to give you the ideal system for you.
Our highly skilled engineers work alongside our customers to ensure minimal disruption whilst on site installing refrigeration and air conditioning products discreetly at times that fit in with your business hours. Their attention to detail and commitment to customer satisfaction is a key aspect of our work.
We provide a comprehensive support service, making sure your emergencies are handled promptly and effectively by a qualified engineer. To allow us to provide the best service possible, our engineers regularly update their training to stay ahead of current legislation and regulations, ensuring we can always keep you informed of important changes that may affect the way you operate.
In desperate times of something breaking down, we offer a fast and reliable service, giving you honest and experienced advice. All parts supplied and work carried out are covered by warranties. Our engineers will offer advice on the most economical road to repairing and equipment failures.
Routine maintenance of equipment is often overlooked by many companies, they see the cost of a maintenance contract being a waste of money but at Evapoler Eco Cooling Solutions we believe a periodic service of this equipment can often save thousands of Rupees in replacement parts. A maintenance service once every three or six months, improves the life-span of the equipment and is a cost-effective way of ensuring continuity of use. Annual maintenance Contracts are tailored to suit individual customer’s needs and the equipment cover required.
Evapoler is engaged in providing innovative, eco-friendly, energy efficient Industrial air cooling solutions and is run by Professionals from diverse fields.
